Single-Head Tube Bending Machine

CNC Tube bending machine for the production of two- and three-dimensional parts of tube or solid material.

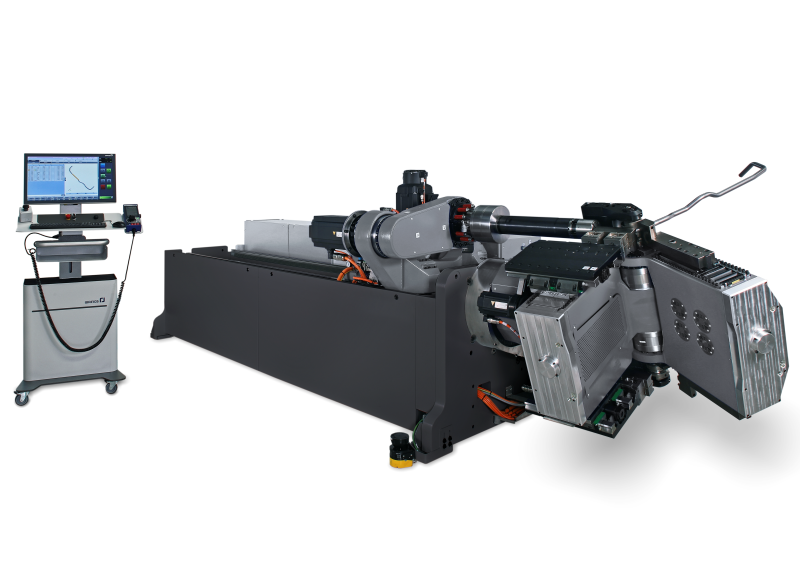

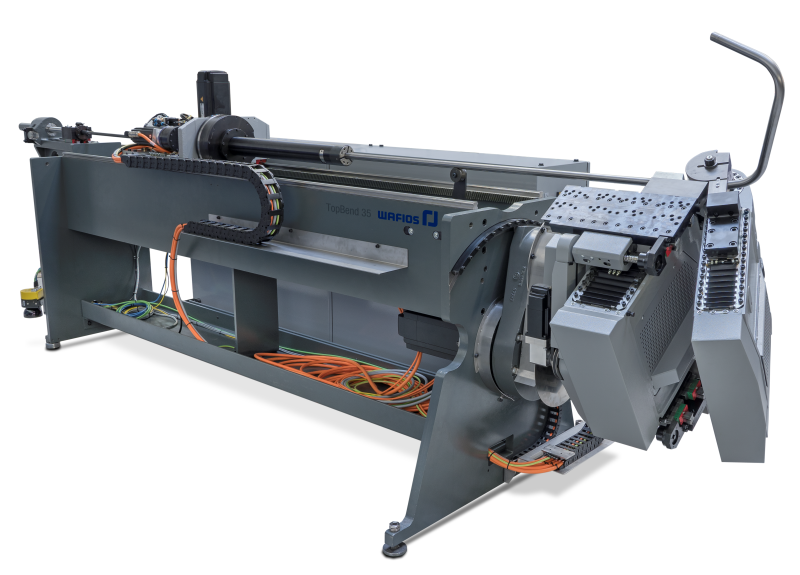

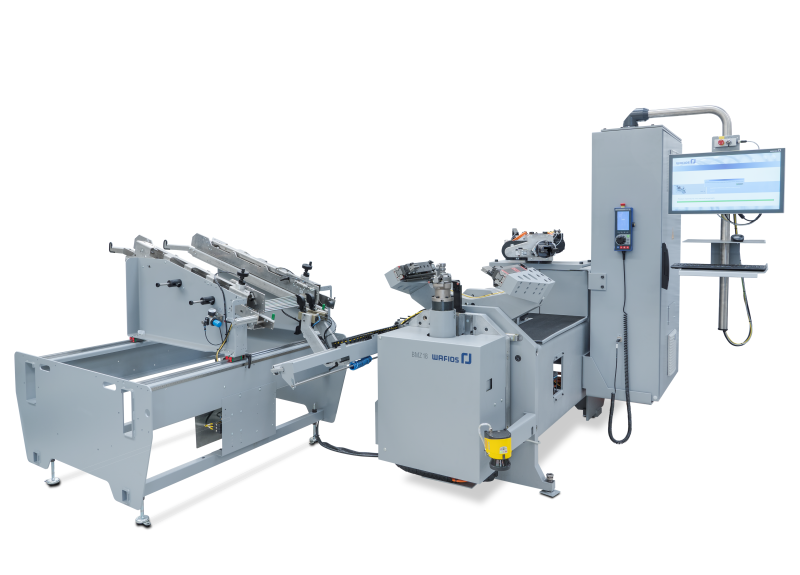

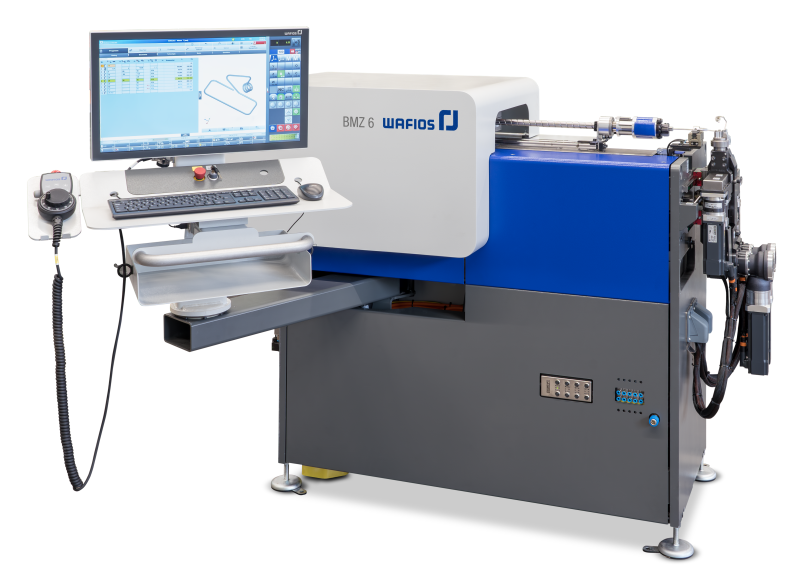

Benefits BMZ Series
  • High level of flexibility and higher degree of automation
  • Highest output and quality
  • Value added superior and precise technology
  • Perfect handling of machine due to functional design
  • Configuration of machine according to product requirements
Types

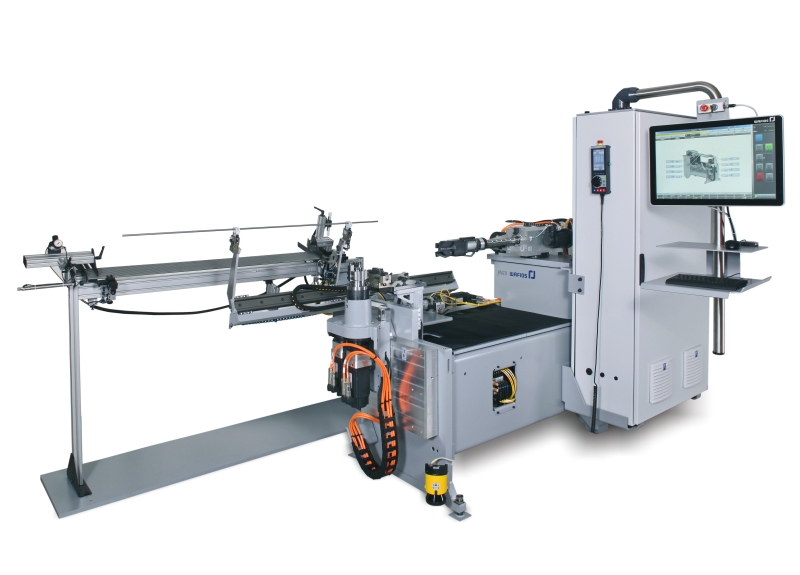

BMZ 8
Operating range
Tube diameter 8.0 x 1 mm
Standard lengths, recommended 2000 mm
From BMZ magazine 100 - 2000 mm
CNC axes
Standard/Maximum 6 / 10
Bending head 3 axes
Spindle unit (without swiveling) 2 axes
Lateral displacement of bending head 1 axes
Internal mandrel unit ----
Auxiliary gripper Pneumatic
Swiveling in (spindle) 1 axes (optional)
Gripper tool
Operating principle Pneumatic
Structure Open
Single stroke 750 mm
Multiple stroke Any number of strokes
Programming
Length/angle Yes
Coordinates Yes
Order lists Yes
Graphical display Yes
Automation
Loading from a magazine Optional
Position-oriented depositing Optional
Combination with robots Optional
Weight 1150 kg
Space requirement 2100 x 1250 x 2050 (l x w x h mm)

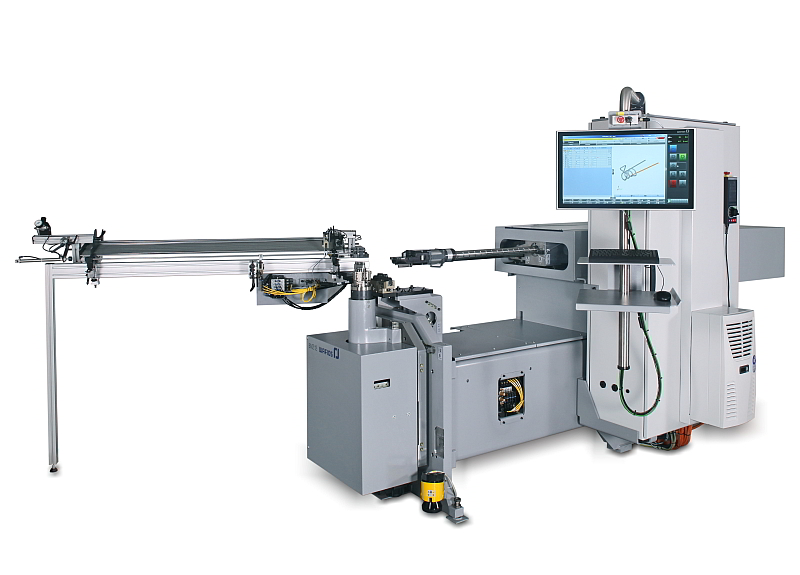

BMZ 12
Operating range
Tube diameter 12.0 x 1 mm
Standard lengths, recommended 2000 mm
From BMZ magazine 100 - 2000 mm
CNC axes
Standard/Maximum 7 / 10
Bending head 3 axes
Spindle unit (without swiveling) 2 axes
Lateral displacement of bending head 1 axes
Internal mandrel unit 1 axes (optional)
Auxiliary gripper Pneumatic
Swivel angle of gripper 1 axes (optional)
Gripper tool
Operating principle Pneumatic
Structure Open
Single stroke 750 mm
Multiple stroke At will
Programming
Length/angle Yes
Coordinates Yes
Order lists Yes
Graphical display Yes
Automation
Loading from a magazine Standard
Position-oriented depositing Standard
Combination with robots Optional
Weight 1300 kg
Space requirement 2150 x 1250 x 2050 (l x w x h mm)
BMZ 52
Operating range
Tube diameter 21.0 x 1.5 mm
Standard lengths, recommended 2 000 mm (Option 3 000)
With internal mandrel max. 1600 mm
CNC axes
Standard/Maximum 6 / 14
Bending head 2 axes
Internal mandrel unit 1 axes (optional)
Gripper tool ----
Programming
Length/angle Yes
Coordinates Yes
Graphical display Yes
Automation
Loading from a magazine Standard
Position-oriented depositing Standard
Combination with robots Optional
Weight 3000 kg
Space requirement 3300 x 1200 x 1475 (l x w x h in mm) (without magazine)
Images
Videos
Loading the player ...
Downloads

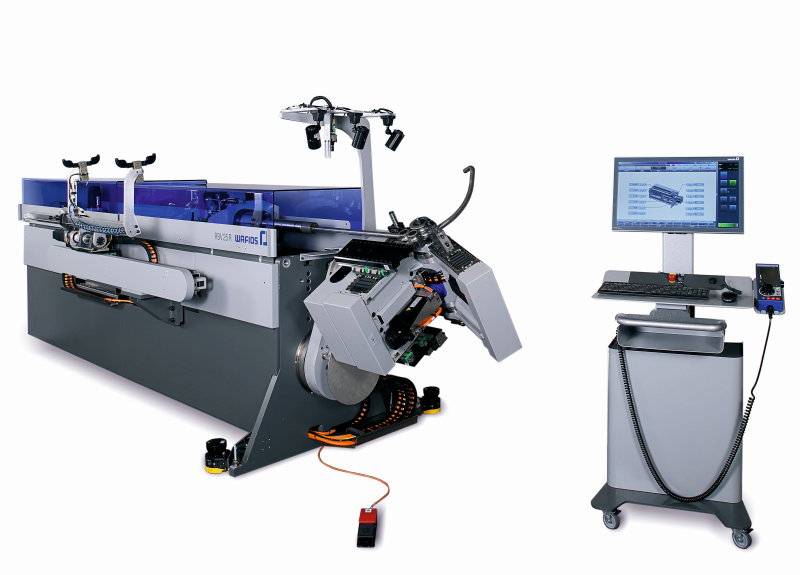

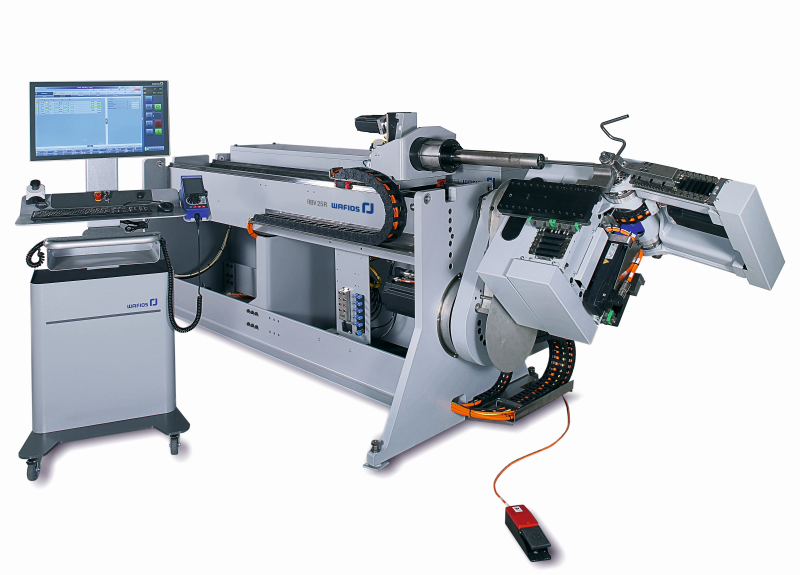

Benefits RBV Series
  • Highest precision at maximum rigidity of machine body and bending head
  • Very high operating speed due to performance-optimized design of machine and drive system
  • Highest energy efficiency thanks to state-of-the-art drive technology with energy recovery
  • Modular machine structure that can be adjusted to a wide range of applications
  • High machine availability due to durable machine design
Types

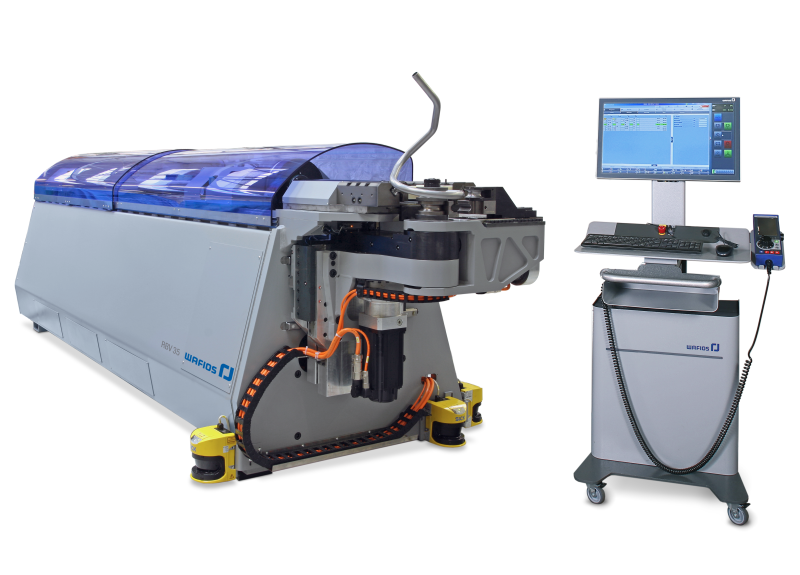

RBV 35
Tube diameter 10 - 35 x 2 mm
Standard lengths, recommended 3000 mm
Bending torque 6 kNm
Boost pressure 12 kN
Clamping force 52 kN

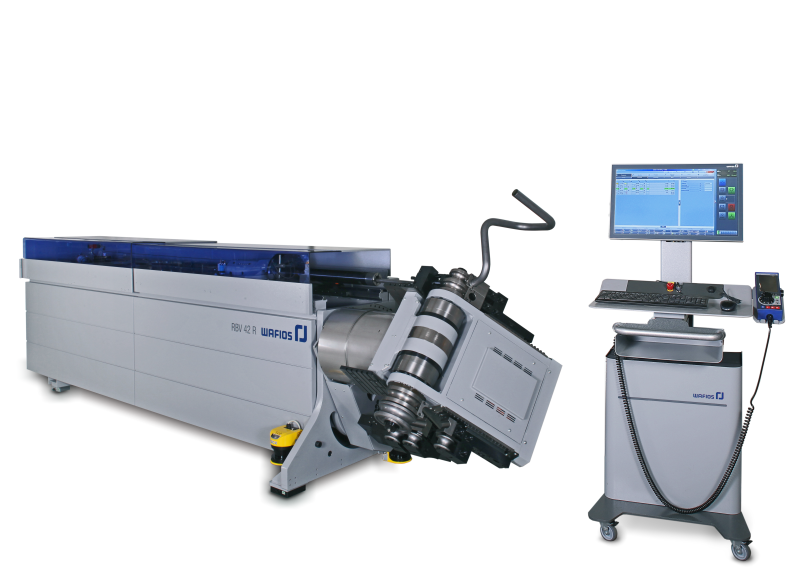

RBV 42 R
Tube diameter 10 - 42 x 2 mm
Standard lengths, recommended 3000 mm
Bending torque 4.5 kN
Boost pressure, advance feed unit 10 kN
Clamping force 30 kN
RBV 42 ST
Tube diameter 10 - 26 x 4 mm (Solid material max. 22.0 mm)
Standard lengths, recommended 3100 mm
Bending torque 4.5 kNm
Boost pressure 20 kN
Clamping force 58 kN
RBV 42 RS
Tube diameter 10 - 42 x 3 mm
Standard lengths, recommended 3000
Bending torque 4.5 KN
Boost pressure, advance feed unit 20 kN
Clamping force 58 kN

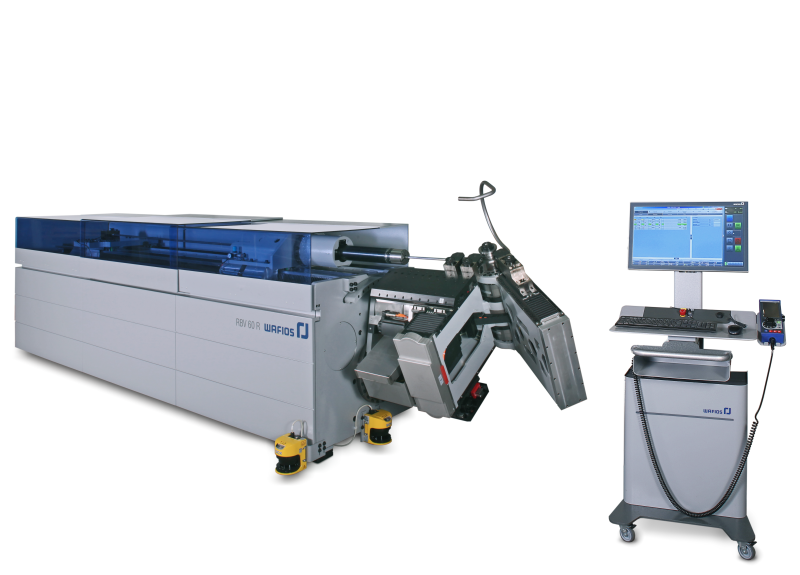

RBV 60 R
Tube diameter 20 - 60.3 x 2 mm
Standard lengths, recommended 3000 mm
Bending torque 8 kNm
Boost pressure, advance feed unit 25 kN
Boost pressure, follow bar 10 kN
Clamping force 60 kN

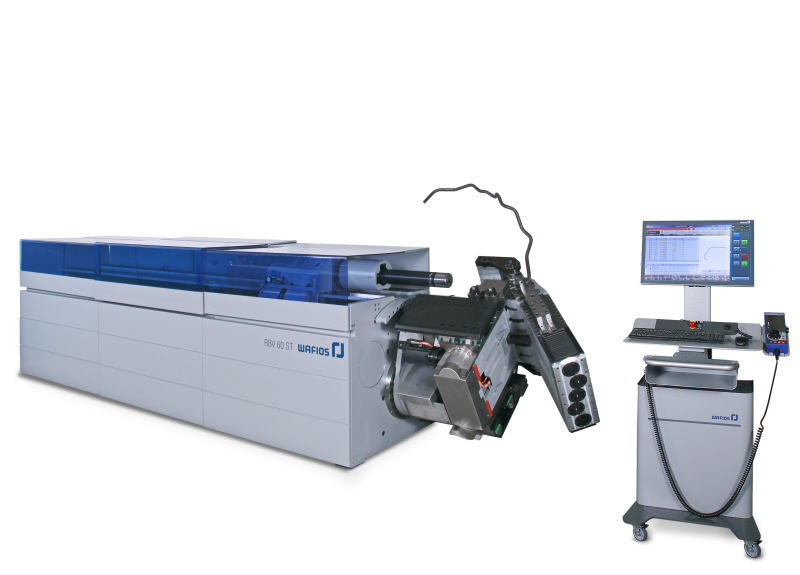

RBV 60 ST
Tube diameter 20 - 35 x 4 mm (Solid material max. 25.4 mm)
Standard lengths, recommended 3500 mm
Bending torque 8 kNm
Boost pressure 50 kN
Clamping force 140 kN
RBV 60 RS
Tube diameter 20 - 60.3 mm
Standard lengths, recommended 3000 mm
Bending torque 8 kNm
Boost pressure, advance feed unit 50 kN
Clamping force 140 kN

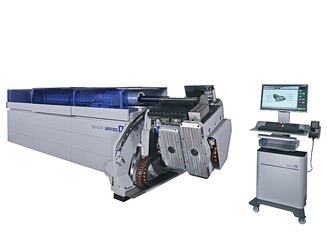

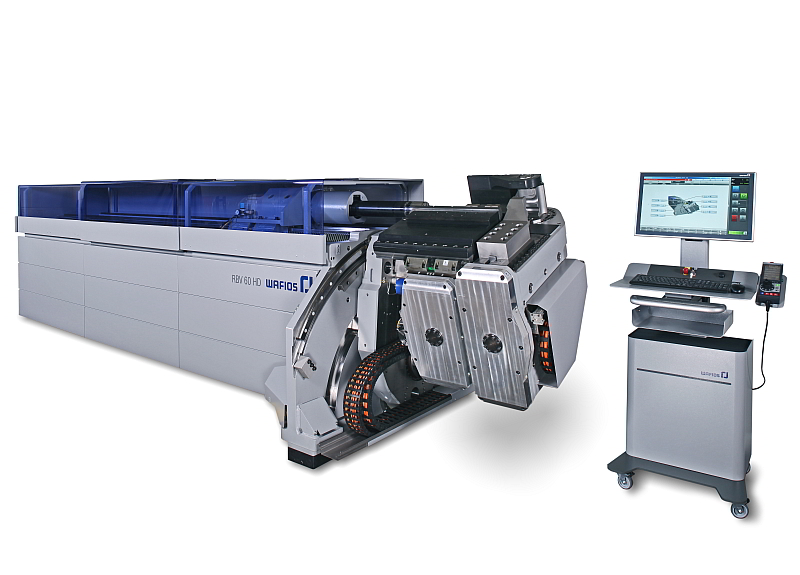

RBV 60 HD
Tube diameter 20 - 43 mm (Solid material max. 43.0 mm)
Standard lengths, recommended 3500 mm
Bending torque 25 kNm
Boost pressure 50 kN
Clamping force 300 kN
Images
Videos
Loading the player ...
Loading the player ...
Downloads

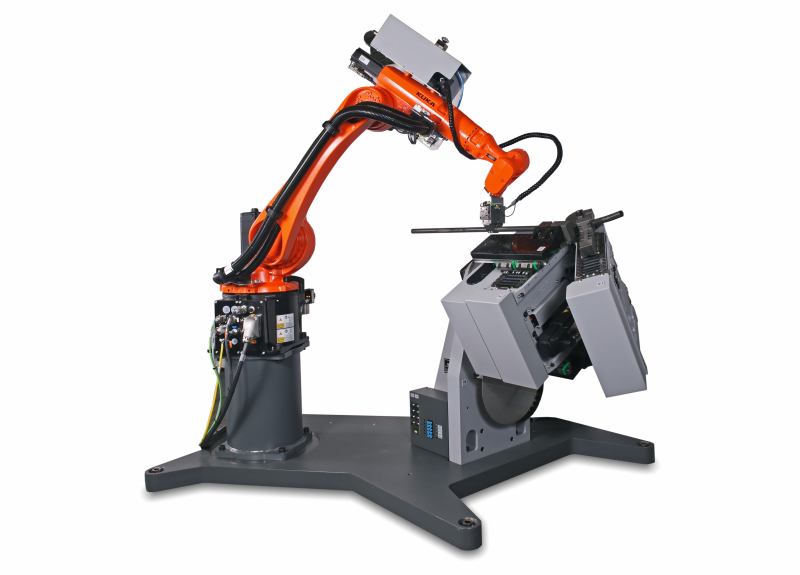

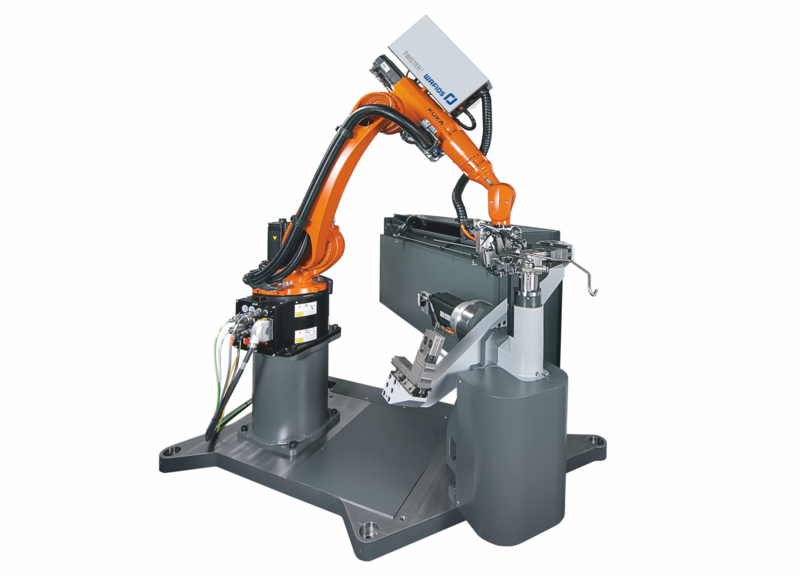

Benefits TWISTER²
  • TWISTER² speaks EasyWay - the control platform for robot and machine
  • Unique, fully integrated system
  • Process reliability and productivity leap for a flexible production of three-dimensional geometries
  • Intelligent combination of handling and bending tasks thanks to collaboration between robot and bending unit
  • Modular design enables incorporation of external systems and subsequent processes
  • Freely selectable bending sequence of geometry elements
Types
TWISTER² 16-12-RL
Operating range
Tube diameter 12.7 - 1 mm
Standard length from magazine 2000 mm (3000 mm option)
CNC axes
Machine axes completely integrated into robot axes 3
Bending head 3
Collet/rotary gripper 1
Collet/rotary gripper
Axes of collet/rotary gripper 1
Operating principle Pneumatic
Structure Open
Programming
Control of robot as machine axes Yes
Length/angle Yes
Coordinates Yes
Order lists Yes
Simulation Option
Machine control WPS 3.2 EasyWay
Automation
Loading from a magazine Option
Position-oriented depositing Yes
Space requirement 4650 x 3800 x 2350 (l x w x h mm)
Weight 2600 kg
TWISTER² 16-18-RL
Operating range
Tube diameter 18 - 1.5 mm
Standard lengths, recommended 2000 mm (3000 mm Option)
CNC axes
Machine axes completely integrated into robot axes 3
Bending head 3; + 1 Servomotor-driven vertical clamping; + 1 Servomotor-driven follow bar (option)
Collet/rotary gripper 1
Collet/rotary gripper
Axes of collet/rotary gripper 1
Operating principle Pneumatic
Structure Open
Programming
Control of robot as machine axes Yes
Length/angle Yes
Coordinates Yes
Order lists Yes
Simulation Option
Machine control WPS 3.2 EasyWay
Automation
Loading from a magazine Option
Position-oriented depositing Yes
Space requirement 4650 x 3800 x 2350 (l x w x h mm)
Weight 2700 kg
Images
