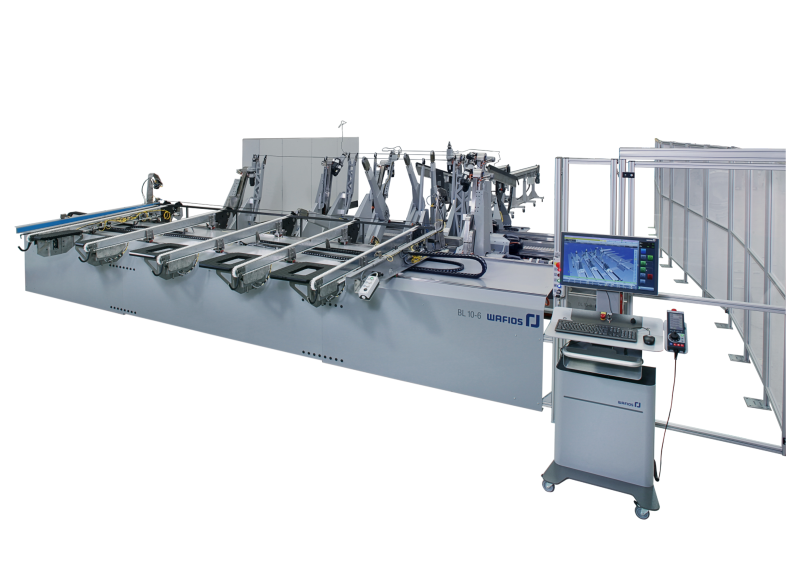

Multiple-Head Tube Bendig Machine

Production of complex, three-dimensionally bent parts

Benefits BL 10
  • Broad range of parts possible, including with complex geometries thanks to the special kinematics of the tube bending machine
  • Increase in output even with highly complex and unstable parts through automatic optimization of the bending processes and part transfer thanks to iQsmartbend
  • Maximum repeat accuracy thanks to rotary-draw bending integrated in one-of-a-kind, universal, low-wear tool concept
  • One-of-a-kind, innovative loading concept solves insertion problems experienced with long, unstable lines
  • Reduction in unit costs due to minimized non-productive times, rapid part transfer, low-wear tool drives, space-saving machine concept, and automatic optimization of bending processesn
Types
BL 10-2
Bending heads 2 pcs.
Tube diameter steel
400 N/mm² 4 - 10 x 1,0 mm
Tube diameter aluminum
270 N/mm² 4 - 12.7 x 1,0 mm
Tube length up to 6000 mm
Extension of operating range Option
iQtube bending simulation Option
Length measuring device Option
Camera system Option
Color detection Option
Movable auxiliary grippers Option
Ext. programming station Option
iQinspect measuring cell connection Option
Machine control WPS 3.2 EasyWay
BL 10-4
Bending heads 4 pcs.
Tube diameter steel
400 N/mm² 4 - 10 x 1,0 mm
Tube diameter aluminum
270 N/mm² 4 - 12.7 x 1,0 mm
Tube length up to 6000 mm
Extension of operating range Option
iQtube bending simulation Option
Length measuring device Option
Camera system Option
Color detection Option
Movable auxiliary grippers Option
Ext. programming station Option
iQinspect measuring cell connection Option
Machine control WPS 3.2 EasyWay
BL 10-6
Bending heads 6 pcs.
Tube diameter steel
400 N/mm² 4 - 10 x 1,0 mm
Tube diameter aluminum
270 N/mm² 4 - 12.7 x 1,0 mm
Tube length up to 6000 mm
Extension of operating range Option
iQtube bending simulation Option
Length measuring device Option
Camera system Option
Color detection Option
Movable auxiliary grippers Option
Ext. programming station Option
iQinspect measuring cell connection Option
Machine control WPS 3.2 EasyWay
