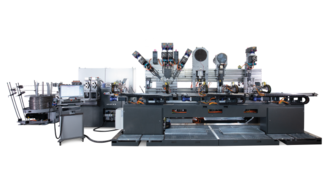

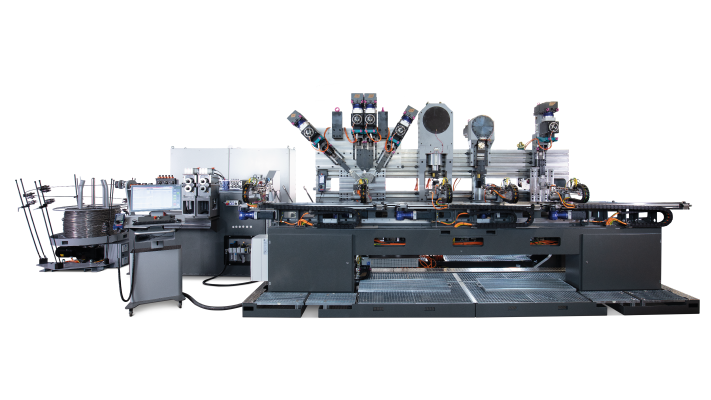

Transfer Bending Machine
CNC coiling and bending centres for the production of two- and three-dimensional bent parts as well as frames made of wire and profile materials.
Benefits BQ
- Modular structure for individual production solutions
- Stations for bending, forming, flattening, thread rolling and die cutting
- Rotary straightening or roller straightening, chamfering available as option
- Patent-pending transfer system for transporting workpieces
- The stations can be installed as required by the production process
- The WPS 3.2 EasyCNC enables an easy, separate programming of the modules
Types
| BQ 10 | |
|---|---|
| Wire diameter | 3 - 10 mm |
| 600 N/mm² | 3 - 10 mm |
| 1900 N/mm² | 3 - 5 mm |
| Feed rollers | 2 Paar |
| Rod length | 90 - 800 mm |
