Tension Spring Coilers

Extension Spring Machines for a Wide Range of Different Loop Shapes

Benefits ZO Series
  • The machine concept has been completely redesigned based on decades of experience. It stands for maximum reliability and highest outputs in the production of extension springs.
  • The spring loops are optically measured to ensure maximum quality.
  • The reliable looping plate technology guarantees highest fl exibility of loop shapes. It can be set up outside the machine.
  • Looping plates and tools from predecessor machines can be used.
Types
ZO 16
Wire diameter 0.2 - 0.6 mm
Outer spring diameter 1.25 - 6 mm
Spring body length 3 - 30 mm
Only right
Loop height max. 2× Di mm
Output max 80 pcs/min

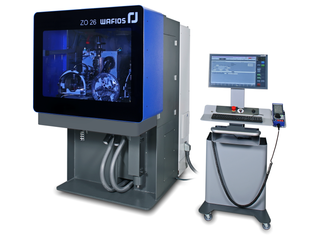

ZO 26
Wire diameter 0.5 - 1.6 mm
Outer spring diameter 4 - 16 mm
Spring body length 6 - 60 mm
Only right
Loop height max. 2× Di mm
Output max 80 pcs/min
Images
Downloads
