Endworking systems

Straightening machines combined with chamfering unit for producing chamfered wire sections

Benefits Endworking systems
  • Machining both rod ends simultaneously
  • Minimization of set-up times
  • Optimized, language-neutral operator guidance
  • Reuse of some of the tools from previous models possible
  • Improved working conditions due to service notes and electronic operating instructions
Types
R 23 EBS
Wire diameter
600-800 N/mm² 1.5 - 4 mm
Cutting lengths with additional supports 150-1000/2000/3000 mm
Performance, rods max. 180 pcs./min

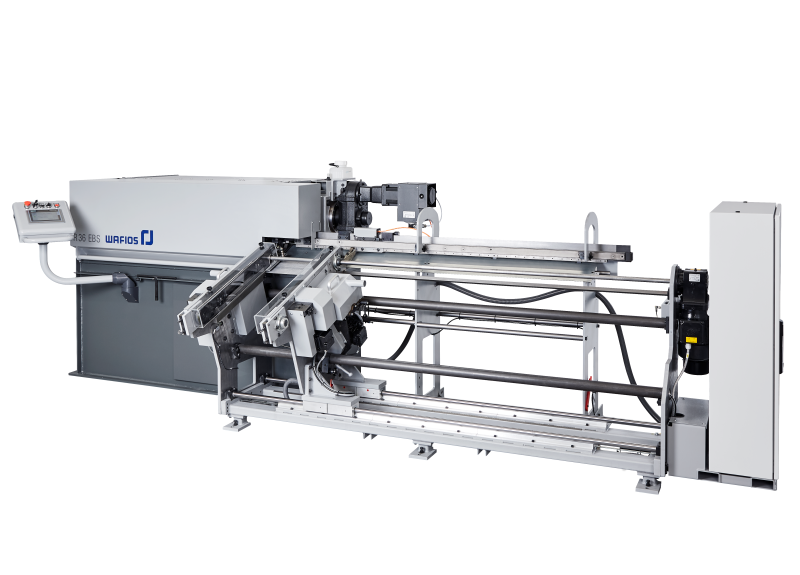

R 36 EBS
Wire diameter
600-800 N/mm² 2.5 - 7 mm
Cutting lengths with additional supports 150-1000/2000/3000 mm
Performance, rods max. 180 pcs./min

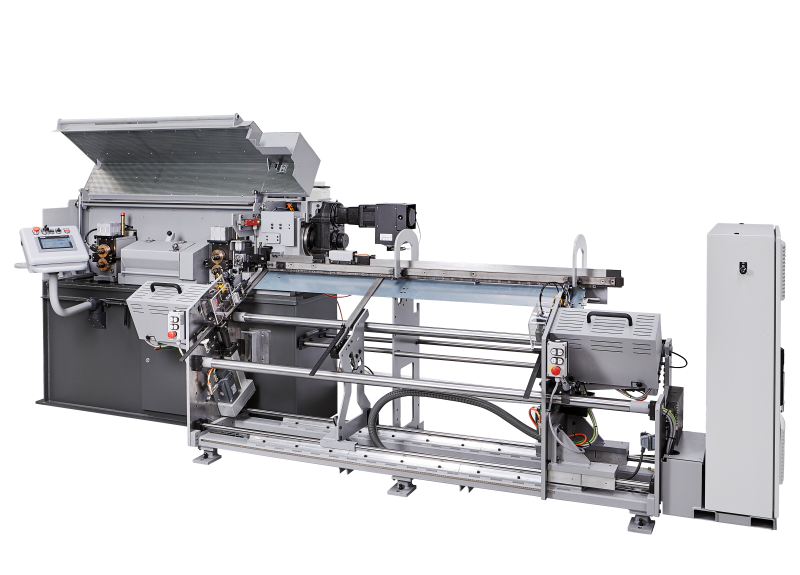

R 36 EBF
Wire diameter
600-800 N/mm² 3 - 7 mm
Clamping done by pneumatic cylinders
Cutting lengths with additional intermediate stations* 160-1000/2000/3000 mm
Performance, rods max. 110 pcs./min
Clamping done by electric cylinders
Cutting lengths with additional intermediate stations* 160-1000/2000/3000 mm
Option short length version ** 130 - 190 mm
Performance, rods max. 130 pcs./min
R 36B EBF
Wire diameter
600-800 N/mm² 3 - 8 mm
Clamping done by pneumatic cylinders
Cutting lengths with additional intermediate stations* 160-1000/2000/3000 mm
Performance, rods max. 110 pcs./min
Clamping done by electric cylinders
Cutting lengths with additional intermediate stations* 160-1000/2000/3000 mm
Option short length version ** 130 - 190 mm
Performance, rods max. 130 pcs./min
R 45 EBF
Wire diameter
600-800 N/mm² 4 - 10 mm
Clamping done by pneumatic cylinders
Cutting lengths with additional intermediate stations* 180-1000/2000/3000 mm
Performance, rods max. 100 pcs./min
Clamping done by electric cylinders
Cutting lengths with additional intermediate stations* 160-1000/2000/3000
Option short length version ** 130 - 190 mm
Performance, rods max. 100 pcs./min
R 45B EBF
Wire diameter
600-800 N/mm² 4 - 12 mm
Clamping done by pneumatic cylinders
Cutting lengths with additional intermediate stations* 180-1000/2000/3000 mm
Performance, rods max. 100 pcs./min
Clamping done by electric cylinders
Cutting lengths with additional supports 160-1000/2000/3000 mm
Option short length version ** 130 - 190 mm
Performance, rods max. 130 pcs./min
AF 700
Wire diameter
600-800 N/mm² 3 - 10 mm
Cutting lengths 80-880/1500/2380 mm
Performance, rods max. 120 pcs./min
* option
** on request
