Chain Calibration Machine
Chain manufacturing machines
Benefits KPH
- PLC machine control and industrial PC with color screen for data entry, operator guidance and error diagnosis
- All paths and forces are electronically measured, digitally displayed and saved
- Chains can be calibrated to a certain path or force
Types
| KPH 400 | |
|---|---|
| Wire diameter | 13 - 30 mm |
| Chain width | max. 150 mm |
| Clamping length under load | 300 - 1140 mm |
| Setting stroke | max. 250 mm |
| Setting force | max. 1 000 kN |
| KPH 500 | |
|---|---|
| Wire diameter | 18 - 45 mm |
| Chain width | max. 160 mm |
| Clamping length under load | 410 - 1500 mm |
| Setting stroke | 1250 mm |
| Setting force | max. 2 000 kN |

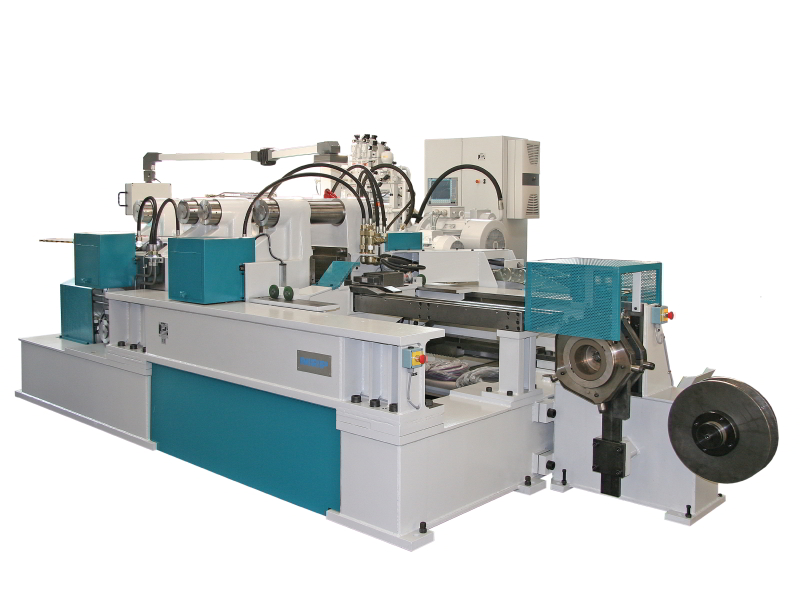

| KPH 600 | |
|---|---|
| Wire diameter | 26 - 54 mm |
| Chain width | max. 195 mm |
| Clamping length under load | 500 - 1500 mm |
| Setting stroke | max. 300 mm |
| Setting force | max. 4 000 kN |
