Chain Bending Machines
Chain manufacturing machines
Benefits KEB Series
- Dimensionally accurate and evenly bent chain in continuous operation
- Robust machine design for the production of high-strength chains over a long period of time
- Safety devices for protecting machine parts and tools
Types

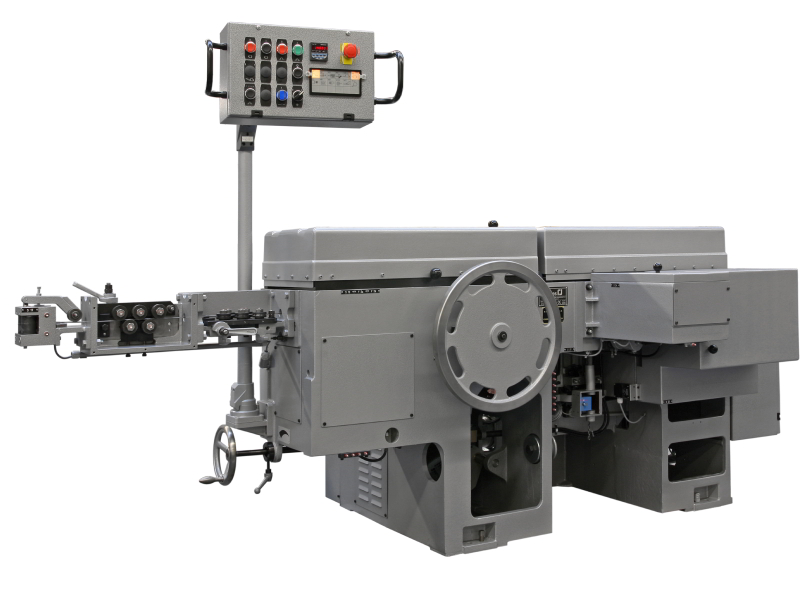

| KEB 3.1 | |
|---|---|
| Wire diameter | |
| at max. 750 N/mm² | 2 - 6.5 mm |
| at max. 500 N/mm² | 2 - 6.5 mm |
| Wire infeed length | max. 120 mm |
| Inside length of links (pitch) | max. 42 mm |
| Output, chain links | 150 - 120 pcs./min |
| KEB 4.1 | |
|---|---|
| Wire diameter | |
| at max. 750 N/mm² | 4 - 10 mm |
| at max. 500 N/mm² | 4 - 11 mm |
| Wire infeed length | max. 200 mm |
| Inside length of links (pitch) | max. 66 mm |
| Output, chain links | 90 - 65 pcs./min |

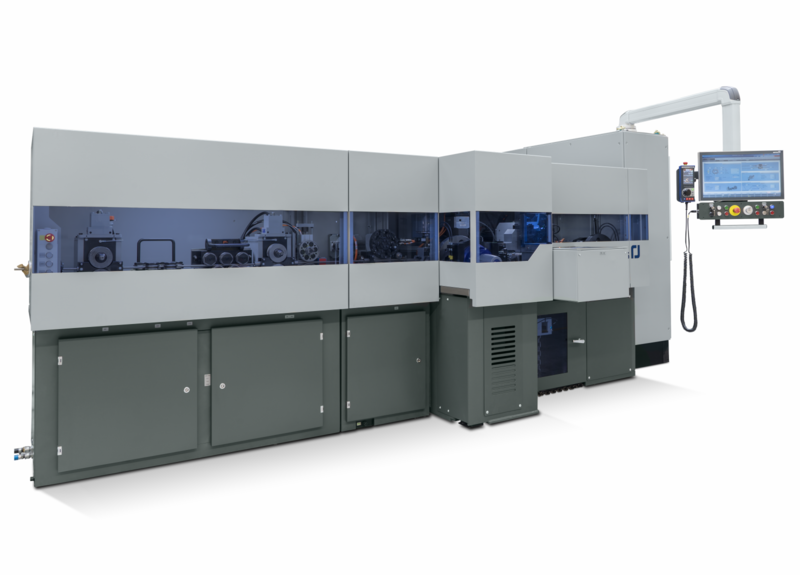

| KEB 4.2 | |
|---|---|
| Wire diameter | |
| at max. 1000 N/mm² | 5 - 9 mm |
| at max. 900 N/mm² | 5 - 10 mm |
| Wire infeed length | max. 155 mm |
| Inside length of links (pitch) | 14.5 - 52 mm |
| Output, chain links | 75 - 60 pcs./min |
| KEB 5.1 | |
|---|---|
| Wire diameter | |
| at max. 750 N/mm² | 6 - 13 mm |
| at max. 500 N/mm² | 6 - 14 mm |
| Wire infeed length | max. 240 mm |
| Inside length of links (pitch) | max. 82 mm |
| Output, chain links | 80 - 55 pcs./min |

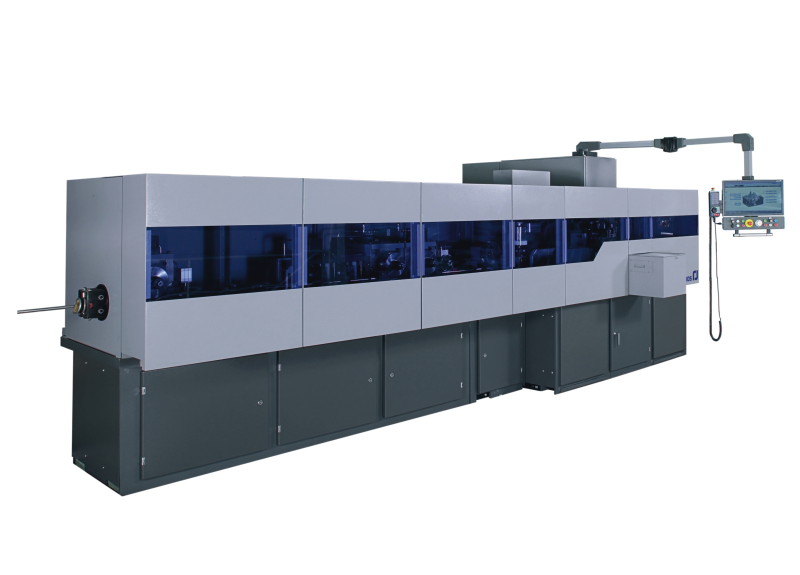

| KEB 7.2 | |
|---|---|
| Wire diameter | |
| at max. 1000 N/mm² | 10 - 16 mm |
| at max. 500 N/mm² | 10 - 18 mm |
| Wire infeed length | max. 280 mm |
| Inside length of links (pitch) | 29 - 95 mm |
| Output, chain links | 45 - 35 pcs./min |

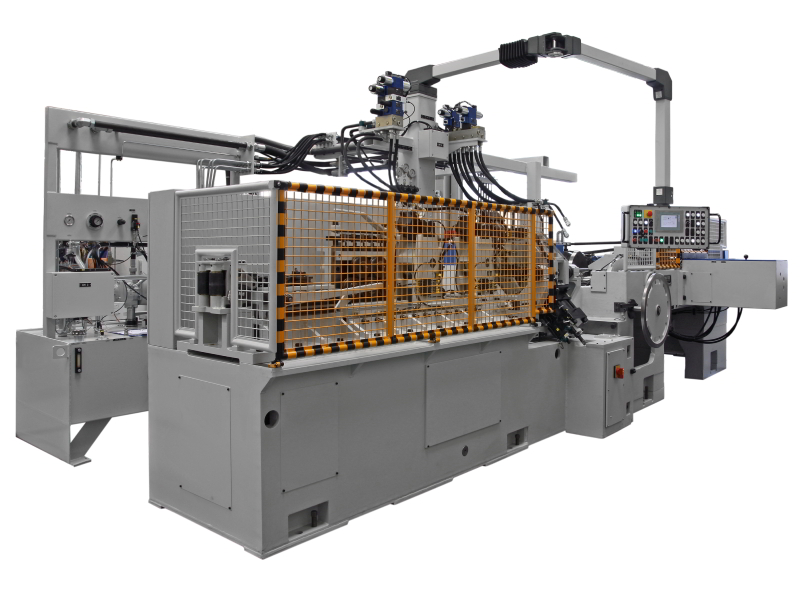

| KEB 8.1 | |
|---|---|
| Wire diameter | |
| at max. 750 N/mm² | 12 - 20 mm |
| at max. 500 N/mm² | 12 - 23 mm |
| Wire infeed length | max. 340 mm |
| Inside length of links (pitch) | max. 100 mm |
| Output, chain links | 25 - 15 pcs./min |
Images
Videos
Loading the player ...
Downloads
Benefits KER Series
- Robust machine design for the production of high-strength chains over a long period of time
- Chain is evenly bent and in continuous operation and meets tightest bending tolerances
- Wire surface is not damaged, i.e. high surface quality of chain
Types

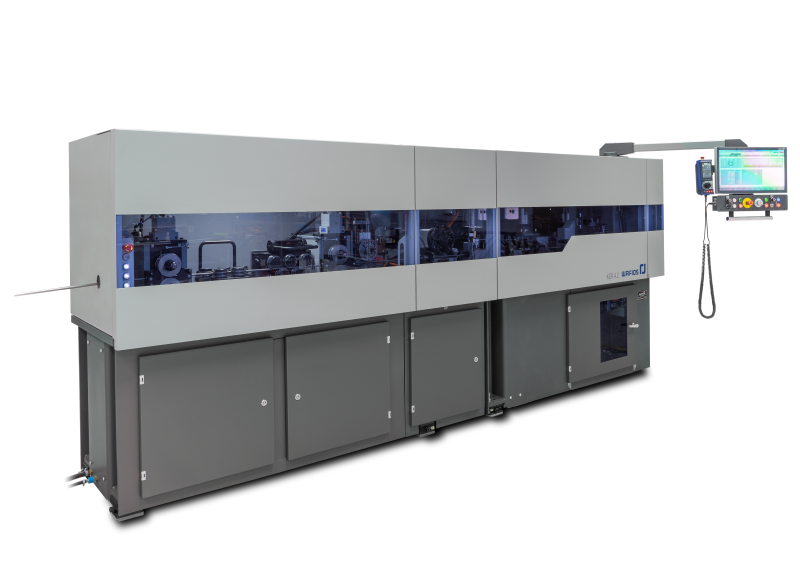

| KER 4.2 | |
|---|---|
| Wire diameter | |
| at max. 900 N/mm² | 5 - 10 mm |
| at max. 1000 N/mm² | 5 - 9 mm |
| Inside length of links (pitch) | 14.5 - 52 mm |
| Output, chain links | 75 - 60 pcs./min |
| KER 5.2 | |
|---|---|
| Wire diameter | |
| at max. 900 N/mm² | 8 - 13 mm |
| at max. 1000 N/mm² | 8 - 12 mm |
| Wire infeed length | max. 210 mm |
| Inside length of links (pitch) | 22.5 - 70 mm |
| Output, chain links | 65 - 50 pcs./min |
| KER 7.2 | |
|---|---|
| Wire diameter | |
| at max. 500 N/mm² | 10 - 18 mm |
| at max. 900 N/mm² | 10 - 17 mm |
| at max. 1000 N/mm² | 10 - 16 mm |
| Wire infeed length | max. 250 mm |
| Inside length of links (pitch) | 29 - 105 mm |
| Output, chain links | 45 - 22 pcs./min |
| KER 8 | |
|---|---|
| Wire diameter | |
| at max. 750 N/mm² | 13 - 20 mm |
| at max. 500 N/mm² | 13 - 20 mm |
| Wire infeed length | max. 360 mm |
| Inside length of links (pitch) | max. 126 mm |
| Output, chain links | 26 - 15 pcs./min |
Images
Downloads
Benefits KBA
- Sophisticated design, i.e. the KBA 601 and its predecessors have been successfully on the market for decades
- Fully automatic bending of chains
- Inductive or conductive heating of chain link blanks can be delivered by WAFIOS
Types

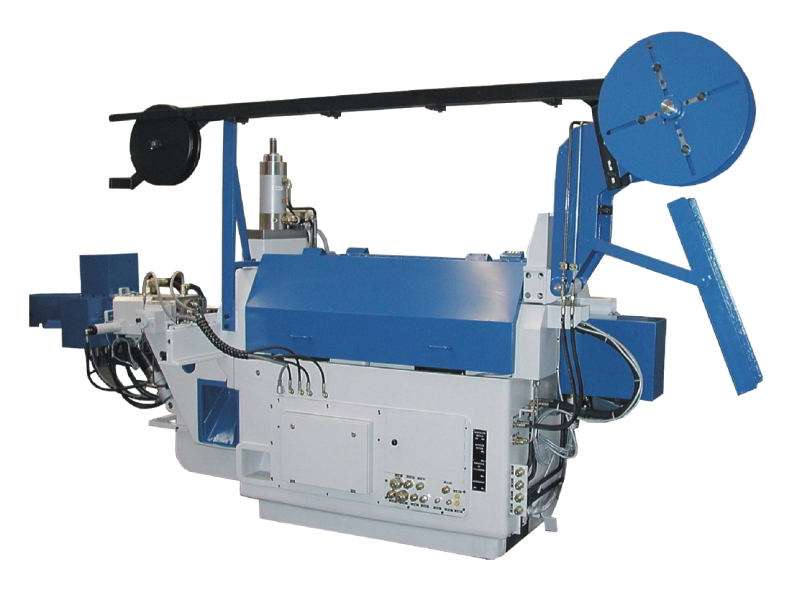

| KBA 601 | |
|---|---|
| Wire diameter | |
| Hot bending | 18 - 48 mm |
| Cold bending | 18 - 30 mm at max. 700 N/mm² |
| Chain link blank length, max | 570 mm |
| Bending pitch, min | 3.2 x d |
| Bending pitch, max | 180 mm |
| Outside bending width, max | 175 mm |
| Output, chain links | 5.5 - 2 pcs./min |
Images
Downloads
